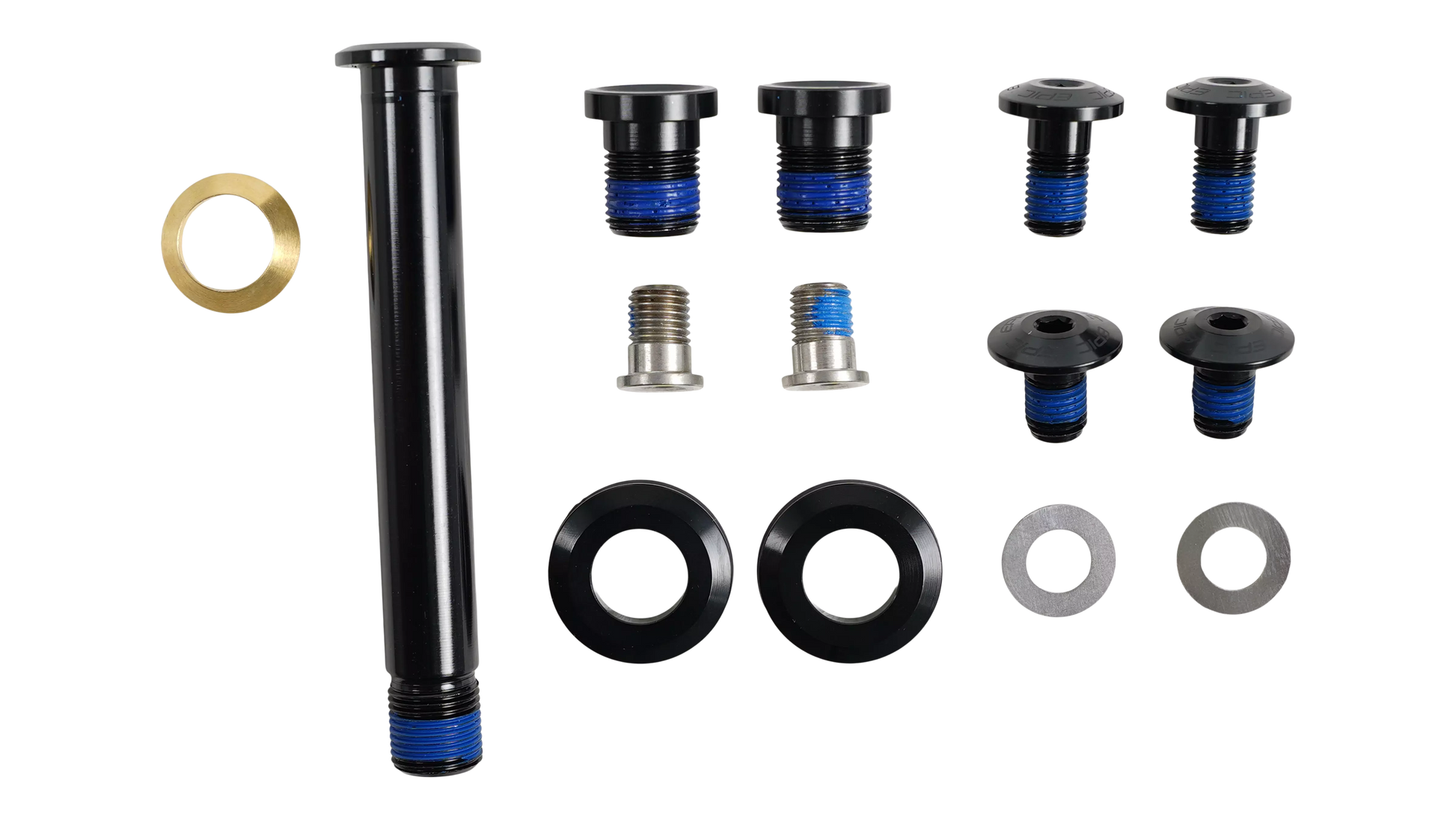

BLT KIT, MY18-20 EPIC, CARBON FRAME, SUSPENSION PIVOT BOLT KIT

• Main Pivot (Chainstay) Pivot Axle: 12mm W x 90mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 1 pcs.
• Main Pivot (Chainstay) Pivot Axle Washer: 12.1mm ID x 18mm OD x 3mm W - Brass - 1 pcs.
• Shock Link to Seat Tube Pivot Bolt: 8mm W x 8mm L - Alloy - Torque: 80 in-lbf (9 Nm) - 2 pcs.
• Shock Link and Extension to Seatstay Pivot Bolt (Outer): 12mm W x 14.3mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 2 pcs.
• Shock Link and Extension to Seatstay Pivot Bolt (Inner): Reverse Thread - 8mm W x 11mm L - Steel - Torque: 80 in-lbf (9 Nm) - 2 pcs.
• Upper Shock Eye Bolt: 8mm W x 11.5mm L - Alloy - Torque: 60 in-lbf (6.8 Nm) - 2 pcs.
• Upper Shock Eye Washer: 8.25mm ID x 15mm OD x 0.3mm W - Steel - 2 pcs.
• Shock Link to Seat Tube Spacers Sold Seperately: SKU - S194500001

Where Used
2020 S-Works Epic Shimano XTR
2020 S-Works Epic Frameset
2020 S-Works Epic EVO
2020 S-Works Epic AXS
2020 Epic Pro
2020 Epic Expert Carbon EVO
2020 Epic Expert Carbon
2020 Epic Comp Carbon EVO
2020 Epic Comp Carbon
2020 EPIC SW TEAM FRM RAW NO CLEARCOAT 29
2019 Women's S-Works Epic
2019 Women's Epic Comp Carbon
2019 S-Works Epic Frameset – Troy Lee Designs LTD
2019 S-Works Epic Frameset
2019 S-Works Epic Frame – LTD
2019 S-Works Epic EVO
2019 Men's S-Works Epic
2019 Men's Epic Pro
2019 Men's Epic Expert
2019 Men's Epic Comp Carbon
2019 Epic Expert EVO
2019 EPIC MEN SW TEAM FRM RAW NO CLEARCOAT 29
2019 EPIC MEN SW CARBON SRAM 29 - WF
2019 EPIC MEN EXPERT CARBON 29 - WF
2018 Women's S-Works Epic
2018 Women's Epic Comp Carbon
2018 Men's S-Works Epic XX1 Eagle
2018 Men's S-Works Epic XTR Di2
2018 Men's S-Works Epic Ultralight Frame
2018 Men's S-Works Epic Frameset - Limited Edition
2018 Men's S-Works Epic Frameset
2018 Men's Epic Pro
2018 Men's Epic Expert
2018 Men's Epic Comp Carbon
2018 EPIC WMN SW TEAM FRM RAW NO CLEARCOAT 29
2018 EPIC MEN SW TEAM FRM RAW NO CLEARCOAT 29
2018 EPIC MEN SW CARBON SRAM 29 - WF
2018 EPIC MEN EXPERT CARBON 29 - WF
2018 EPIC MEN COMP CARBON 29 - WF
